1. Protect security CCTV system with power, control signal and video from high voltage surge.
2. Make sure system and equipment safety when surge come form thunder-bolt or static.
3. Large electric current support, quickly response, minor wastage when join the device.
Specification:

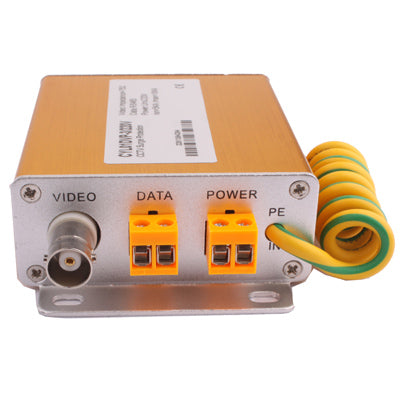

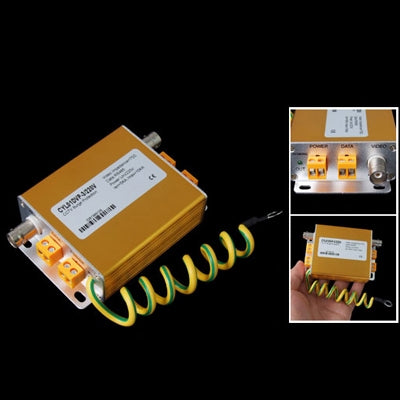

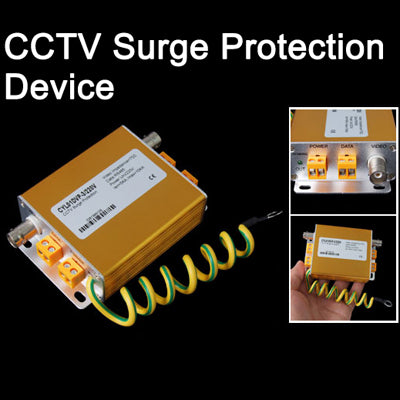

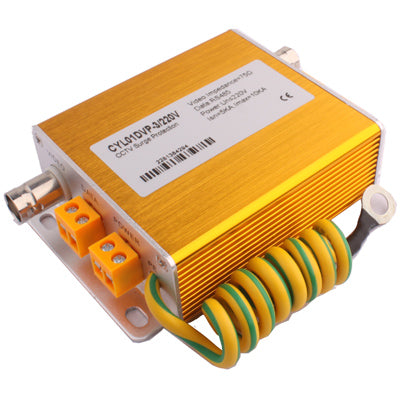

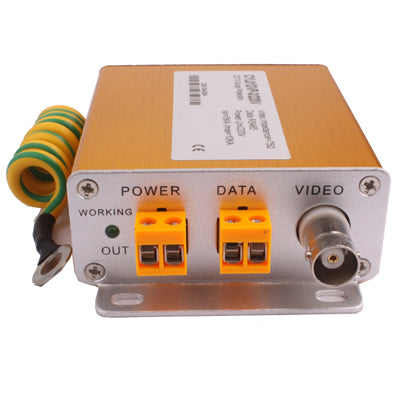

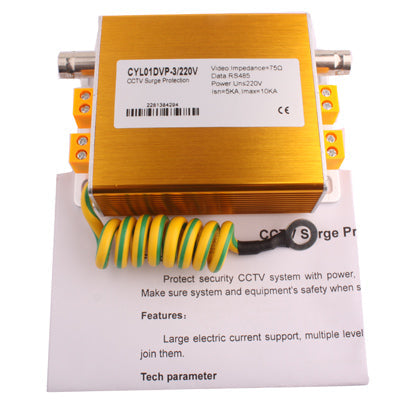

1. Product Name: Surge Protector
2. Material: Metal
3. Model: CYL01DVP-3/220V
4. Type: 3 in 1 Power 220V
5. Video: Surge Protection
6. Discharge Voltage: 8V
7. Max Continual Voltage: 15V
8. Max Transmit Speed: 20MHz
9. Data: Surge Protection
10. Discharge Voltage: 12V
11. Continual Voltage: 30V
12. Transmit Speed: 20MHz
13. Power Surge Protection
14. Continual Voltage: 320V
15. Continual Voltage: 560V
16. Discharge Current: 10KA
17. Insertion Loss: Less than 0.1db
18. Working Temperature: -40 degree C to + 85 degree C
19. Response Time: Less than 10ns
20. Cable Length: 0.35m
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.02lb
|
| Carton Weight |
11.50kgs / 25.35lb
|
| Carton Size |
40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 740 cartons * 54 pcs = 39960 pcs
40HQ: 1719 cartons * 54 pcs = 92826 pcs
|
|
